• Intel® Atom® x6413E (1.5 GHz) and x6425RE (1.9GHz) processor with 8GB DDR4 memory
• Wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F) and wide power input range (10 ~ 36 VDC)
• Port isolation for 8 x DI, 8 x DO, 2 x COM
• DP++ ensures HDMI/DVI compatibility
• Dual storage: 1 xM.2 M-key 2242 PCIe/NVMe or SATA/SSD and 1 x mSATA
• Onboard TPM 2.0 provides hardware-based security
• Modular design for optional iDoor extension
• Ruggedized DIN-rail kit
• Compliant with IEC 61010-1 safety requirements

‍

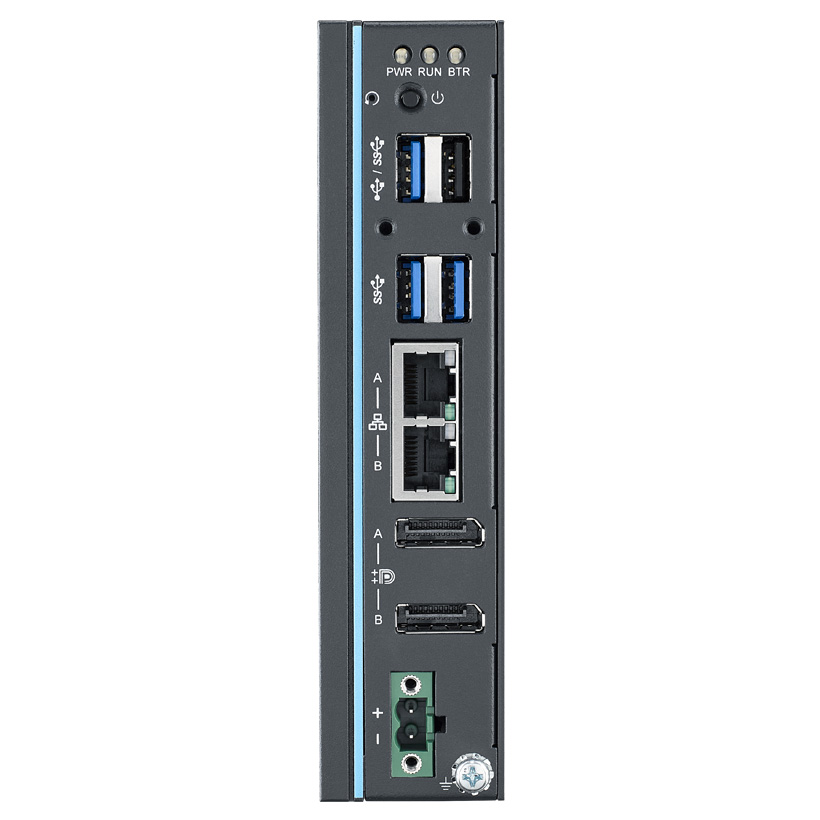

Advantech’s UNO-100 series are DIN-rail integrated controller that feature a modular design for flexible configuration according to specific usage requirements. UNO-137 V2 is equippedwith an Intel® Atom® x6413E processor (1.5 GHz) & optional x6425RE (1.9 GHz), 8 GB DDR4 RAM, and wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F), as well as2 x LAN, 2 x COM, 3 x USB 3.2, 1 x USB 2.0, 8 x DI, 8 x DO, and 2 x DP 1.2. The controller also supports 1 x full-size mini PCIe, 1 x M.2 (M-key), 1 x M.2 (E-key) and 1 x nano SIMcard slot for convenient expansion to satisfy diverse industrial applications. Compliant with IEC 61010-1 safety requirements for industrial use, UNO-137 V2 can be equipped with anoptional second-stack extension kit that supports Advantech’s iDoor technology for integrating additional industrial Fieldbus, wireless communication, I/O, and peripheral modules.

General Specifications

Certification CE, FCC, UL 61010-2-201, CCC, BSMIƒ Dimensions (W x D x H) 35 x 105 x 150 mm (1.4 x 4.1 x 5.9 in)ƒ Form Factor Smallƒ Enclosure Aluminum housingƒ Mounting DIN-railƒ Weight (Net) 0.8 kg (1.7 lb)ƒ Power Requirement 10 ~ 36 VDCƒ Power Consumption 21W (typical), 44W (max.)*For USB iDoor (PCM-24U2U3-BE): 56W max.*For PoE iDoor (PCM-24R2PE-AE): 77W max.ƒ OS Support Win 10 2021 LTSC, Win 11, AdvLinux (Ubuntu 20.04)

‍

Environmentƒ

Operating Temperature*(CPU x6413e)-40 ~ 70 °C/-40 ~ 158 °F with 0.7m/sairflow, with wide-temperature (-40 ~ 85 °C/-40 ~ 185 °F)peripherals(CPU x6425RE) -40 ~ 60 °C/-40 ~ 140 °F with 0.7m/sairflow, with wide-temperature (-40 ~ 85 °C/-40 ~ 185 °F)peripherals(x6413e & x6425RE) -40~60°C without airflow, with widetemperature (-40 ~ 85 °C/-40 ~ 185 °F) peripheralsƒ Storage Temperature - 40 ~ 85 °C/-40 ~ 185 °Fƒ Relative Humidity 95% RH @ 40 °C/104 °F, non-condensingƒ Shock Protection Operating, IEC 60068-2-27, 50G, half sine, 11msƒ Vibration Protection Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz,1hr/axisƒ Ingress Protection IP20

‍

System Hardwareƒ

BIOS AMI 256 Mbit SPIƒ Watchdog Timer Programmable timer with 255 intervals (1 ~ 255 sec)ƒ Hardware Security TPM2.0ƒ Processor Intel® Atom® x6413E, 1.5 GHz (up to 3.0 GHz)Intel® Atom® x6425RE, 1.9 GHzƒ Memory Built-in 8 GB DDR4, 3200 MHz (Up to 32 GB)*Be sure to select thermal pad for CPU/RAM for RAM capacity expansionƒ Graphics Engine Intel® UHD Graphics for 10th Gen Intel® Processorsƒ Ethernet Intel® i226-IT 2.5G, IEEE802.1AS, 802.3azƒ LED Indicators 1 x Programmable LED, 1 x power LED, 1 x RTCbattery LED, and LAN (active, status)ƒ Storage 1 x M.2 M key 2242 SSD (PCIex2/SATA signal)1 x M.2 E key 2230 SSD (PCIe x2 signal)ƒ Expansion 1 x Full-size mPCIe (PCIe/USB2.0/SATA signal)1 x nano SIM card slot (come with mPCIe)1 x M.2 (E-key) 2230 Wi-Fi modules (PCIe x2 +USB2.0 signal)
