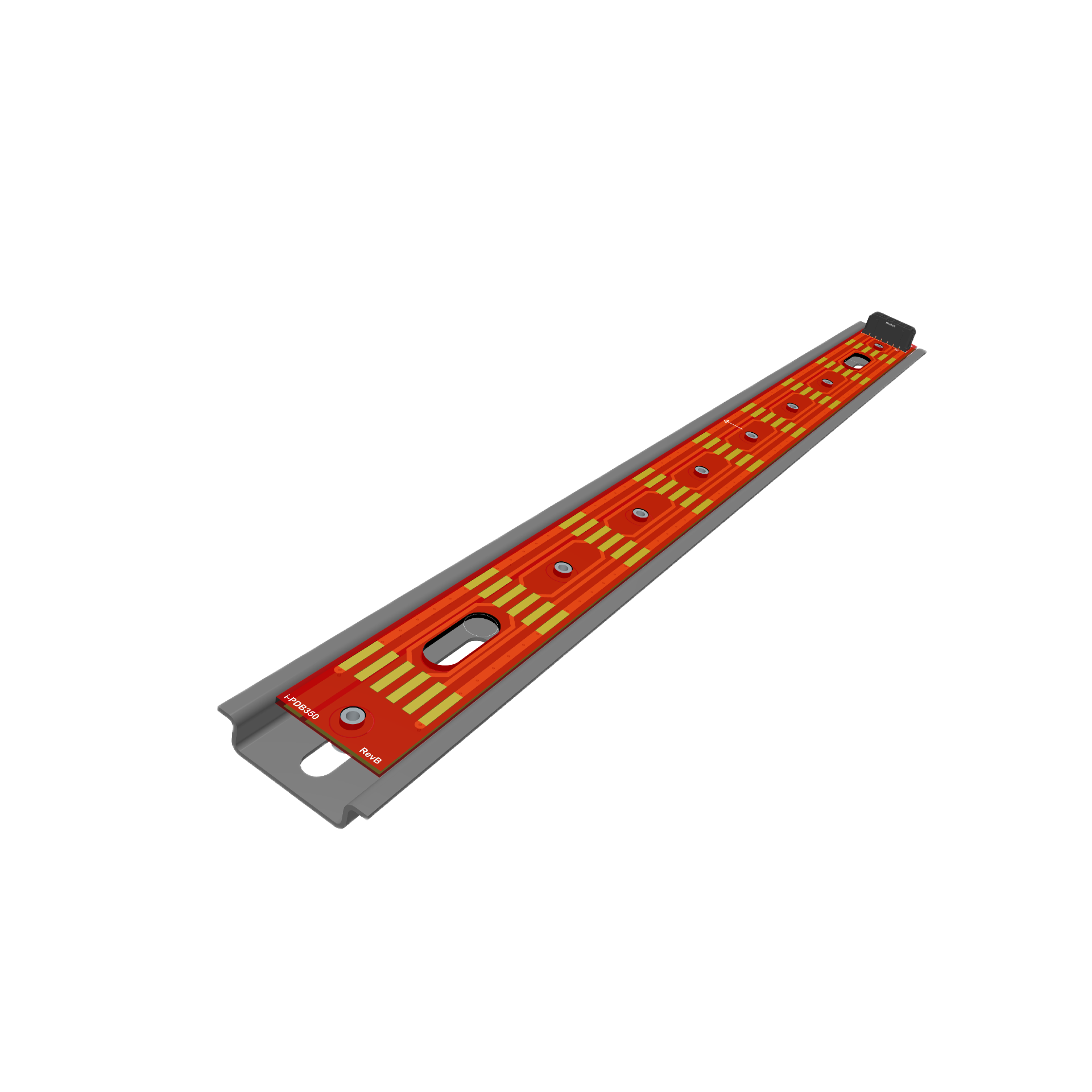

The Ilumento i-PDB350 is our communication and mounting rail designed for all DIN Rail devices. It facilitates the delivery of power and data between the i-PS18 and DIN Rail control modules.

Connectivity:

The Power Data Bus (PDB) simplifies connections within the cabinet, saving time and reducing the clutter of messy wiring. This communication system transmits 24V DC power and data signals from the intelligent power supply. Additionally, it features an emergency Phase Loss trace for alerts and an extra trace reserved for future use.

Ease of Installation:

The i-PDB350 comes pre-mounted on a 35x7.5 DIN Rail, ready for immediate use.

Connections Overview:

The board has nine (9) connection points, allowing for the integration of up to nine (9) 2M control modules or the combination of six (6) 2M control modules with one (1) i-PS18 power supply, or three (3) i-PS18 power supplies. There is also a 12-pin Molex connector for expansion to additional PDB350 rails using the Ilumento Y connector and connection cables.

Communication:

RS485 Data protocol Six pin trace to work with Spring Loaded Center pin off back of the module for 24VDC, Data and override to i-PS18

Connections:

The board has nine (9) connection points, allowing for the integration of up to nine (9) 2M control modules or the combination of six (6) 2M control modules with one (1) i-PS18 power supply, or three (3) i-PS18 power supplies. There is also a 12-pin Molex connector for expansion to additional PDB350 rails using the Ilumento Y connector and connection cables.

Construction:

PCB and Metal 35x7.5 Din Rail

Miscellaneous:

The i-PDB350 includes a rail cover to protect unused contact positions and comes with two DIN Rail end stops.
