The ilumento i-KP is a single-gang Decora device designed to work with the ilumento lighting control system via the Power Data Bus. It is the most flexible low-voltage keypad available, offering configurations from one to ten buttons and an optional Passive Infrared (PIR) sensor for smaller rooms.

- **Clean square edge buttons and plates **
- **Four colors with Matt finishes**
- **Standard Decora Size opening**
- **10 button positions that can be grouped into different combinations**
- **Two (2) button types (small & large)**
   - **Ships with (5) Large blank buttons**
   - **Ships with (2) small blank buttons**
- **Backlit buttons for LED feedback**
- **Engravable buttons**
- **Button combinations from 1 to 10**
- Built in PIR
-

Connectivity:

The i-KP connects to the Power Data Bus i-PDB350 using CAT5e cable and the Device Interface i-DI bridge.

Ease of Installation:

The i-KP is straightforward to install as it is designed to fit in a standard single-gang US-style back box and uses standard Decora opening wall plates. Changing the button requires no special tools or removal of screws, and users can easily accomplish this without taking the keypad off the wall.

Feedback LED:

The i-KP provides feedback for button presses via backlit LEDs that softly illuminate the buttons when pressed. The LEDs can be programmed to function momentarily or interlock with other buttons for continuous feedback.

Sensor Coverage:

Button positions one through four can be replaced with a Passive Infrared (PIR) lens for in-room occupancy or vacancy control. This feature is ideal for smaller room applications that do not require a ceiling-mounted sensor.

Button Configuration:

The i-KP has ten (10) button positions, which can be configured in various combinations of small or large buttons to create layouts ranging from one (1) to ten (10) buttons. Additionally, single buttons can be swapped for different color options, allowing for layouts that include a red button for emergencies without making the entire keypad red.

Engraving Options:

Each i-KP ships in white with five large and two smaller buttons pre-engraved with common applications. Installers can create custom engravings during configuration and programming using the Project Management Cloud startup web and mobile app.

Wall Plate Options:

Both full Decora-style and reduced-opening wall plates are available in a single-gang configuration, allowing button options from one (1) to ten (10).

Color:

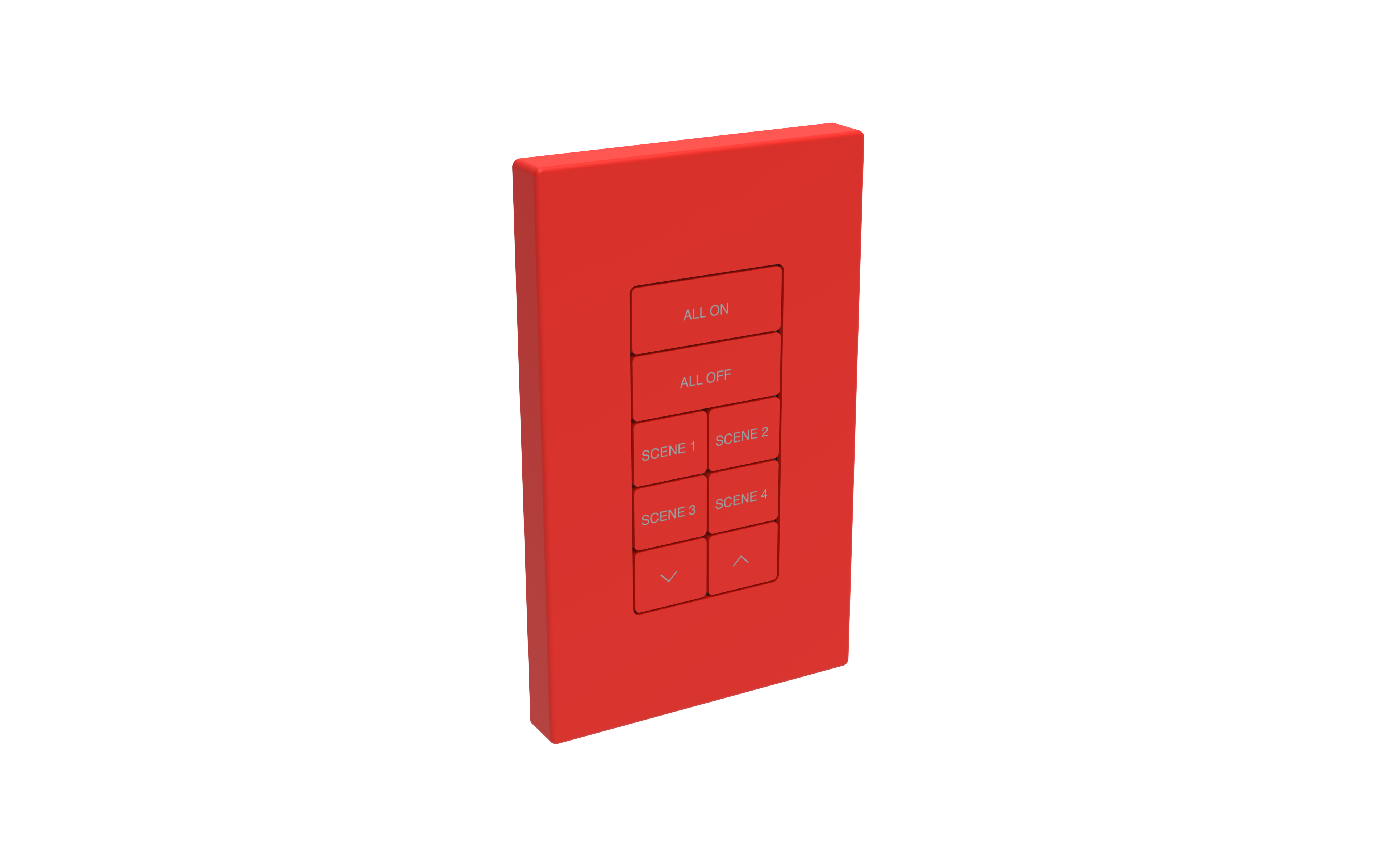

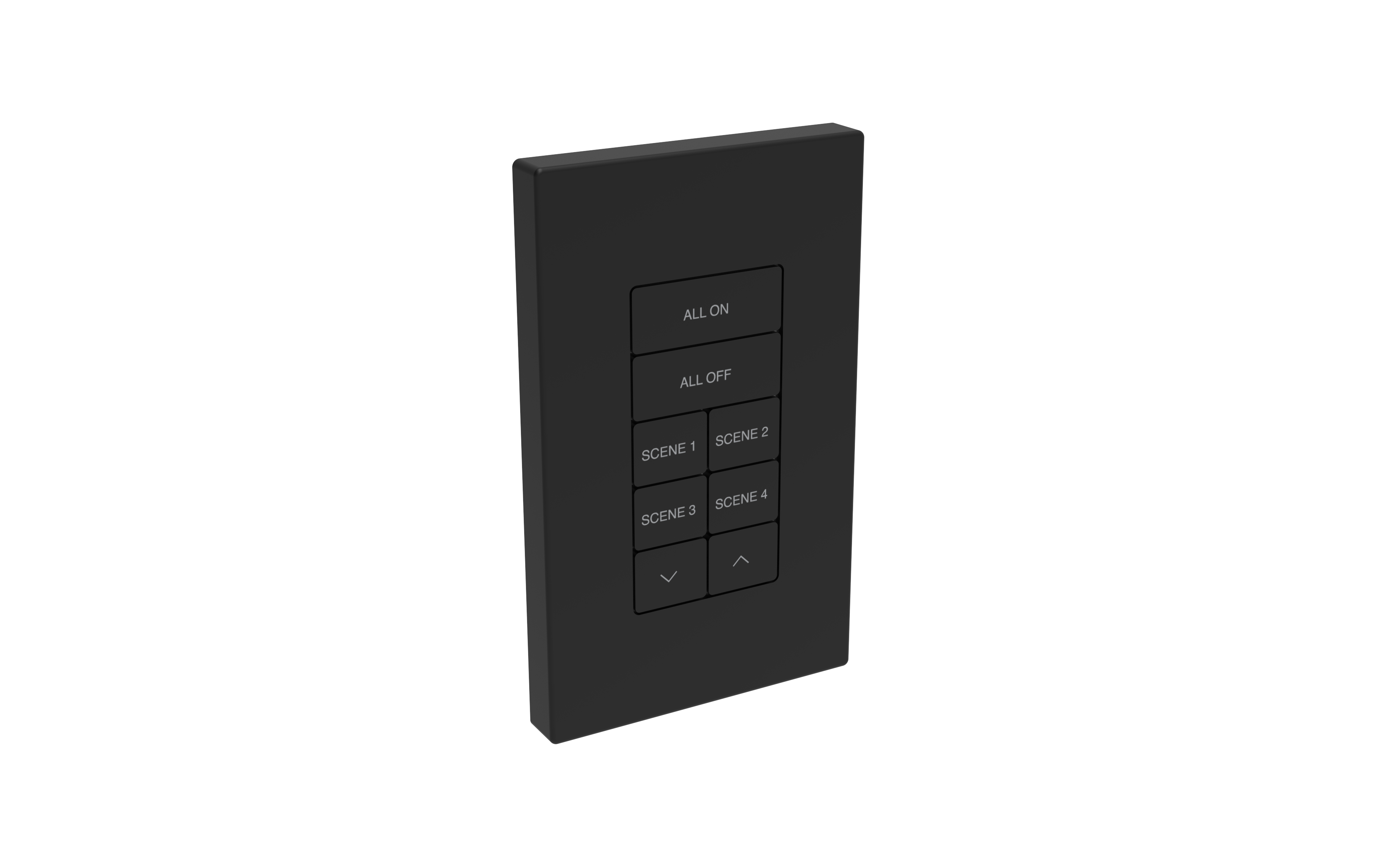

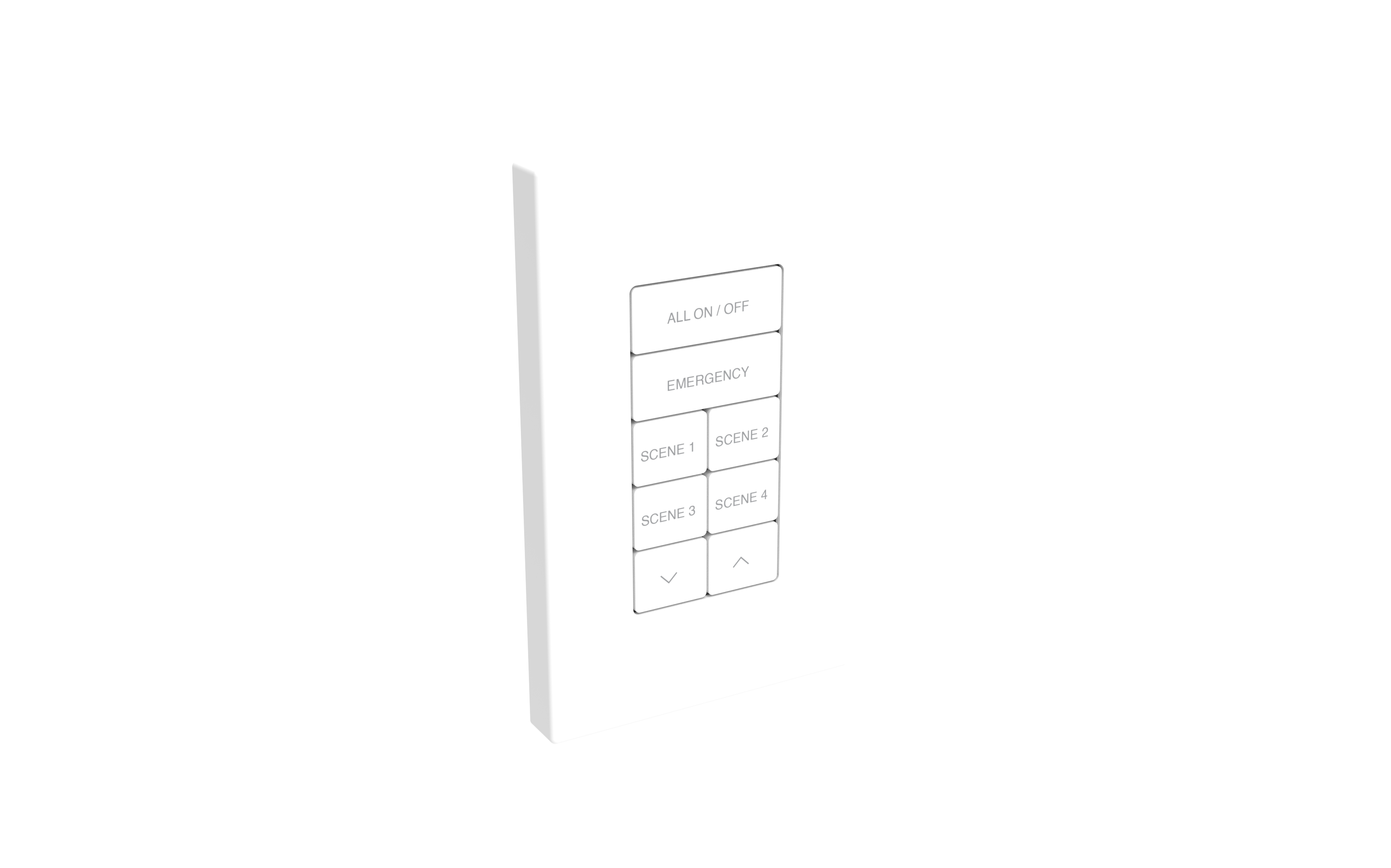

The i-KP is shipped with white textured buttons and a white single-gang wall plate. Additional button and plate colors are available in Black, Grey, and Red.

Protection:

All plastics and the PCB board are coated with a specialized treatment designed to resist degradation from oxide chemicals.

Operating Voltage:

24VDC via Power Data Bus

Communication:

RS485 Data protocol

Connections:

Two (2) RJ45 CAT5e type connectors

Construction:

Plastic housing and front face plate for mounting. Mounts in a single gang, electrical box (not supplied) Available in four (4) colors White (standard), Grey, Black, Red

Weight:

69g (2.43oz)

Environmental:

32° to 131°F (0° to 55°C)

Control & Feedback:

Feedback LED through backlite buttons One (1) to Ten (10) Button configuration options

Compliance:

Listed for US & Canada, CE, FCC Part 15 Class B, IC, WEEE, IEC 62386 Listed for CE, CB global compliance

Power Requirement:

35mA
