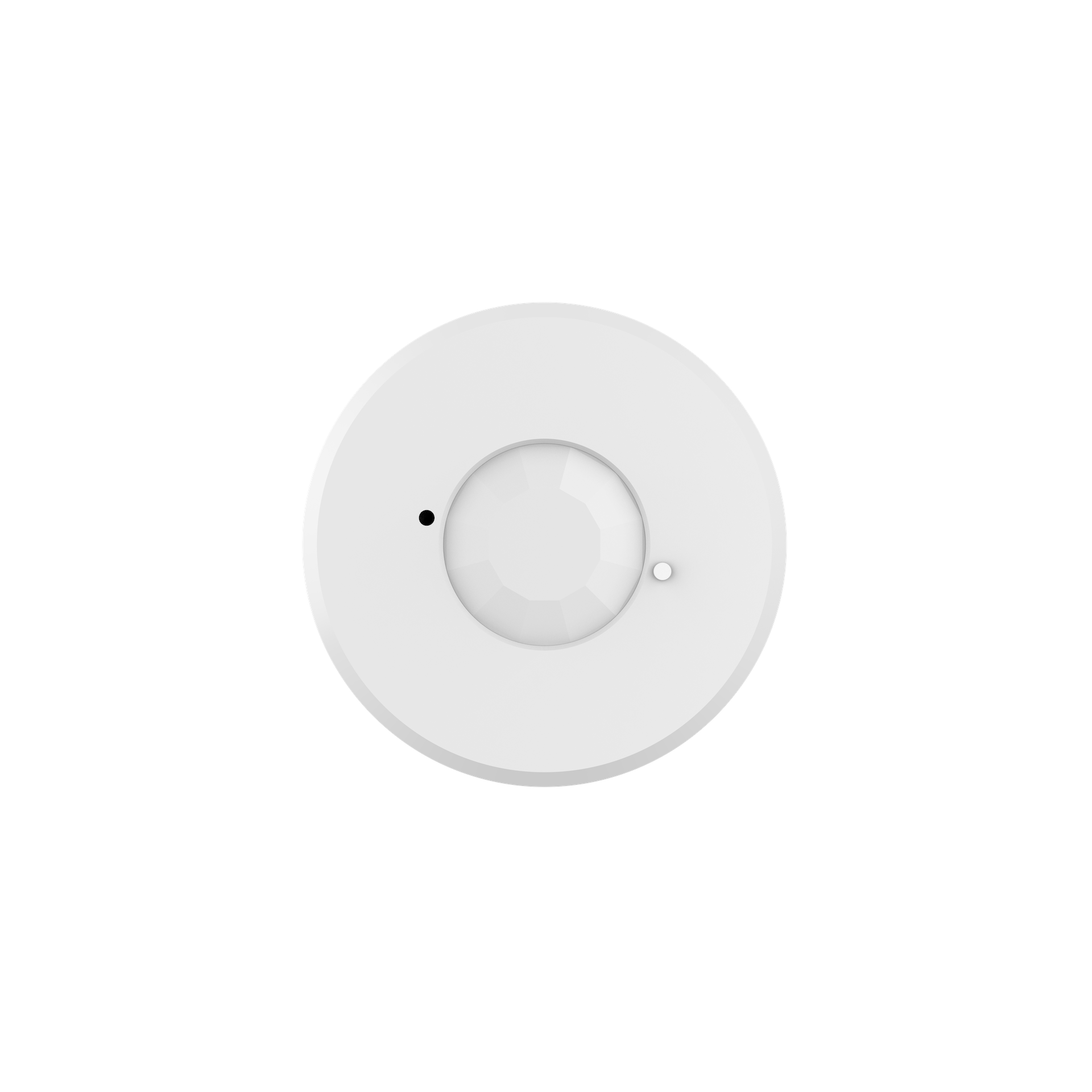

The Ilumento i-DTS is a compact Dual Tech ceiling-mounted sensor incorporating Passive Infrared (PIR) and Acoustic sensing technologies. Before installation, technicians can configure the sensor as an occupancy or vacancy sensor using a setup switch. Additionally, it can be set to adjust mode, providing maximum flexibility and allowing adjustments via the Project Management Cloud and app.

Connectivity:

The i-PIRS connects to the Power Data Bus (i-PDB350) using a CAT5e cable and the Device Interface (i-DI) bridge.

Ease of Installation:

The i-DTS is easy to install. It is designed to fit in a standard round mud ring and a four-square electrical box. It can also be installed in open ceiling areas that do not require conduits or electrical boxes.

Configuration:

Installers can set the i-DTS to occupancy or vacancy mode before installation to prevent accidental changes in the future. It also includes an (adjust) mode that enables setup through the Project Management Cloud and app, utilizing location services to select the most appropriate energy code for your area automatically.

Feedback LED:

The i-DTS features a feedback LED behind the PIR lens, confirming the setup.

Sensor Coverage:

The i-DTS has a coverage area of approximately 84 square meters (or 900 square feet). The acoustic sensor increases the range once triggered to up to 186 square meters (or 2000 square feet).

Operating Voltage:

24VDC via Power Data Bus

Communication:

RS485 Data protocol

Connections:

Two (2) RJ45 CAT5e type connectors

Construction:

Plastic housing and front cover for mounting. Mounts on drop ceiling, direct on drywall, or on a junction box (not supplied)

Weight:

60g (2.12oz)

Environmental:

32° to 131°F (0° to 55°C)

Control & Feedback:

Feedback LED Mode configuration switch

Compliance:

Listed for US & Canada, CE, FCC Part 15 Class B, IC, WEEE, IEC 62386 Listed for CE, CB global compliance

Power Requirement:

25mA
