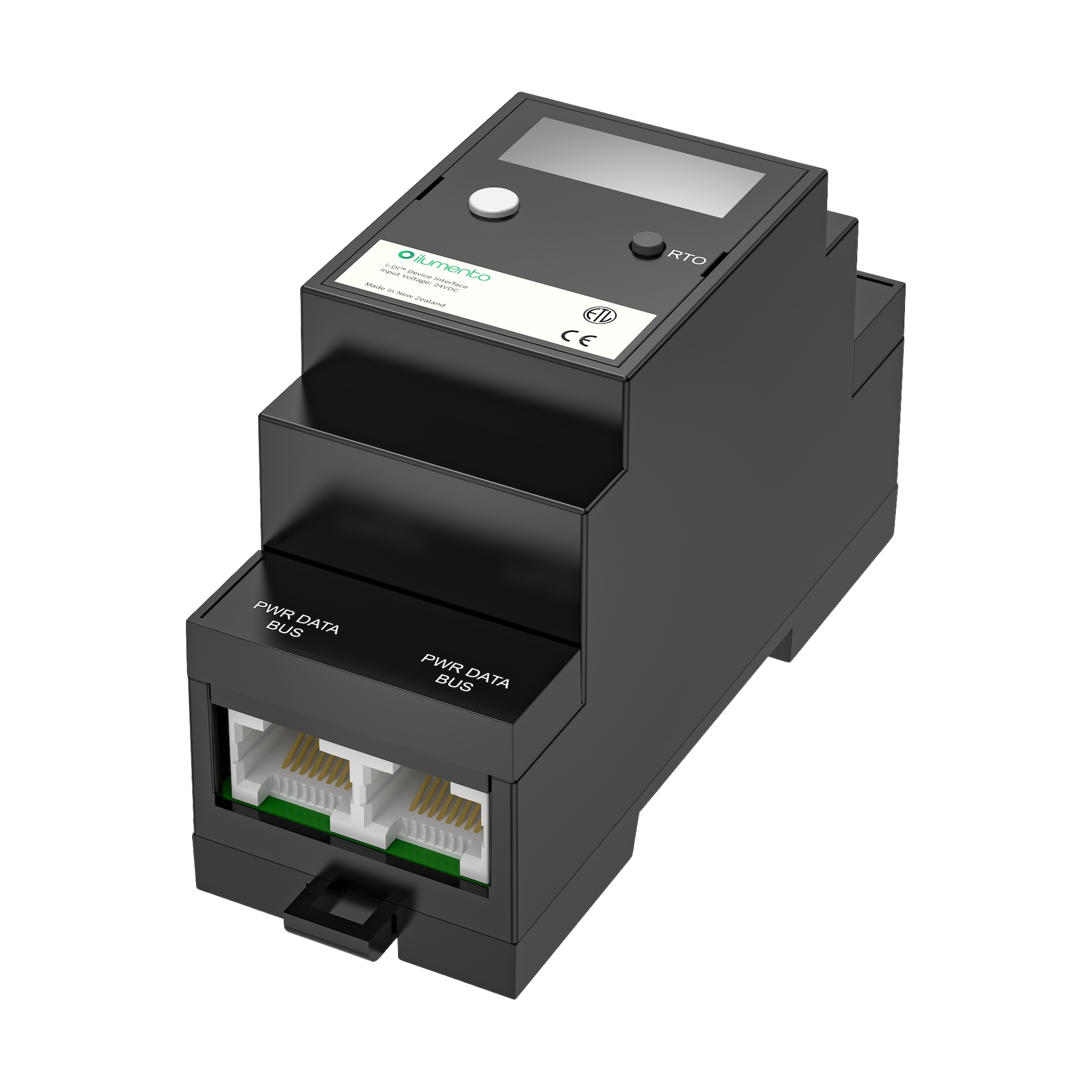

The Ilumento i-DI is an intelligent communication gateway that converts power and data from the i-PDB350 into a CAT5e cable. This allows for connecting keypads, sensors, and other future devices outside the cabinet.

Connectivity:

By utilizing the Power Data Bus (PDB), installers can simplify their installation process, saving time and money by avoiding complex connections that clutter the cabinet. The PDB communication system not only transmits 24V DC power and data signals from the intelligent power supply but also provides an emergency Phase Loss trace for alerts and an additional trace for future use.

Ease of Installation:

Override Features:

Connections Overview:

The i-DI features two RJ45 CAT5e connections that allow for easy linking of keypads, sensors, or other devices to the i-PDB350.

Operating Voltage:

24VDC via Power Data Bus

Communication:

RS485 Data protocol Spring Loaded Center pin off back of the module for 24VDC, Data and override to i-PS18

Connections:

Two (2) RJ45 CAT5e type connectors for KP and Sensors, Power output limited to 1000ma per connection Multi pin connection off the back of the case for LV power, Data RX and TX, EM override and future

Construction:

DIN Rail format, polycarbonate housing 36mm wide, 2M DIN Units Wide

Weight:

69g (2.43oz)

Environmental:

32° to 131°F (0° to 55°C)

Control & Feedback:

Feedback LED Single Rest, Test, Override button

Compliance:

Listed for US & Canada, CE, FCC Part 15 Class B, IC, WEEE, IEC 62386 Listed for CE, CB global compliance

Power Requirement:

15mA

Miscellaneous:

The i-DI includes a logic chip that runs protection protocols to manage data traffic and minimize packet collisions. Additionally, power-limiting technology restricts the output of each CAT5e port to a maximum of 1000mA.
